Water Heater Leaking From Bottom? Find the Source Before You Replace the Tank
A puddle under the heater does not automatically mean the tank has failed. Dry the area, trace the highest wet point, and separate a valve or connection leak from condensation or an internal tank leak.
When a water heater is leaking from the bottom, the most important question is not “How big is the puddle?” but “Where does the water first appear?” A drain valve, T&P discharge pipe, top connection, condensation, or the tank itself can all leave water at the base.
If a water heater is leaking from the bottom, first dry the floor and tank exterior, then trace the water upward. A wet drain valve can often be repaired; water coming from a T&P discharge pipe points to a pressure, temperature, or valve issue; water running down from top connections can mimic a bottom leak; condensation can look like a leak on some gas heaters; but water emerging from the tank body or bottom seam usually means the tank itself has failed and replacement is the practical repair.
If water is spreading toward electrical equipment, the burner area, or finished flooring, stop normal use and arrange service. Shut off the water and energy source only if you know the correct controls and can reach them safely. If you smell gas, leave the area and contact the gas utility or emergency service rather than troubleshooting the heater.
Water Heater Leaking From Bottom? Trace the Water Upward First

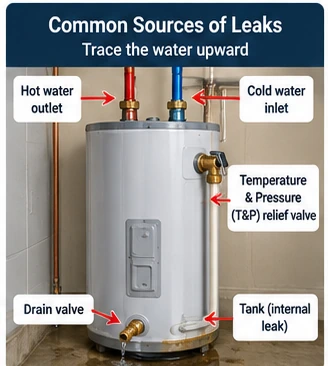

Water follows gravity, so the puddle is often the last place the leak appears—not the source. A fitting near the top can drip down the jacket, a T&P discharge tube can release beside the tank, and a drain valve can seep directly at the bottom.
The dry-and-trace method
Match the Wet Spot to the Most Likely Cause
The same puddle can come from very different failures. Use the source location and timing to choose the next step.
| What becomes wet first | Most likely direction | What it usually means |
|---|---|---|
| Drain valve body or threads | Drain valve leak | Loose, worn, damaged, or not fully sealing valve. |
| End of T&P discharge pipe | Pressure / temperature / T&P issue | The safety valve is discharging; do not cap or plug it. |
| Hot or cold connection at top | Pipe/fitting leak | Water can run down the tank jacket and appear at the bottom. |
| Tank exterior during burner operation | Possible condensation | Common enough on some gas heaters to be mistaken for a tank leak. |
| Tank body or bottom seam | Internal tank failure | Corrosion or structural tank damage; typically not repairable. |
| Water appears only after pressure rises | T&P / thermal expansion | Closed-system pressure may be involved and needs proper diagnosis. |
Drain Valve Leak: The Most Repairable Bottom-Area Source
The drain valve sits low on the tank, so a leak here naturally creates a puddle that looks like a failed tank. Look closely at the valve body, outlet, and the threaded area where it enters the heater.
The valve may not be fully closed or its internal seal may be worn.
A cracked or damaged valve usually needs replacement rather than more tightening.
The threaded connection may be leaking, but aggressive tightening can damage components.
Shift attention to the tank seam or water running down from another source.
Valve replacement requires the heater to be safely shut down, isolated, cooled, and drained according to the manufacturer’s instructions. If you are not already comfortable with that procedure, use a plumber.

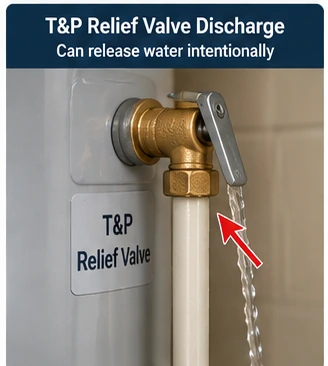

T&P Relief Valve Discharge Can Look Like a Bottom Leak
The temperature and pressure relief valve is a safety device. A. O. Smith explains that it opens to limit excessive temperature or pressure. Intermittent dribbling can be associated with pressure and thermal expansion, while a large hot-water discharge can indicate an overheating control problem.
It is a critical safety path for hot water and pressure. If it is actively discharging, have the cause checked instead of trying to stop the outlet.
A. O. Smith also notes that a closed plumbing system can build pressure from thermal expansion. The T&P valve is not intended to function as the system’s normal expansion control, so repeated discharge should be diagnosed rather than treated as “just a bad valve.”
Check Top Water Connections Before You Condemn the Tank
One of the easiest mistakes is to see water at the base and assume the tank has split. A slow leak at the cold-water inlet, hot-water outlet, flex connector, union, or nearby piping can travel down the outside of the heater and collect underneath.
Dry the connection and watch for moisture returning at the threads, union, hose, or pipe joint.
White, green, or rusty deposits can reveal where a slow leak has been running for a while.
Do not stop at the first wet spot near the floor; trace upward until the surface stays dry.
Pipe repairs can be relatively minor compared with replacing the heater, but corroded nipples, gas piping, soldered joints, and electrical components are not good places for trial-and-error DIY work.
Could It Be Condensation Instead of a Tank Leak?
Yes—especially on some gas-fired storage heaters. A. O. Smith notes that condensation can form when cool surfaces meet hot flue gases, and that it is often mistaken for a leaking water heater.
Timing matters. Condensation is more plausible when moisture appears during or shortly after burner operation and then stops once the heater is fully warmed. A persistent puddle that continues when the heater is not in that operating pattern deserves further leak diagnosis.
If you cannot clearly prove that the moisture is condensation, or if the floor repeatedly gets wet, have the heater inspected. A true tank leak can worsen without warning.
Internal Tank Leak: The Finding That Usually Means Replacement
If the drain valve, T&P discharge, top connections, and visible piping stay dry but water emerges from the tank body or bottom seam, the tank itself becomes the main suspect.
A. O. Smith’s technical guidance is direct: if the tank is leaking after fittings are ruled out, the leaking heater cannot be repaired and should be replaced. Angi’s current 2026 repair guide likewise notes that internal tank corrosion or damage generally requires full replacement.
A storage tank is a pressurized vessel. Sealants, epoxy, sheet-metal patches, or attempts to weld a leaking tank are not appropriate homeowner repairs.
Signs that strengthen the tank-failure diagnosis
- Water starts at the tank body or bottom seam rather than a removable valve.
- Rust or corrosion is concentrated where the water first appears.
- The leak continues after external connections have been dried and ruled out.
- The heater is already near the later part of its service life.
- The leak is getting worse rather than remaining a small, isolated valve seep.
What to Do Right Now if the Leak Is Active
Protecting the home matters more than finishing the diagnosis. The safest response depends on heater type and where the water is going.
If the puddle is reaching wiring, receptacles, service panels, or electrical controls, do not stand in the water or touch energized equipment.
A tank-body leak can expand. Arrange service promptly rather than continuing normal operation.
Do not force a corroded valve. If the shutoff will not move or begins leaking, stop and call a plumber.
If you do not know the correct manufacturer shutdown procedure, do not improvise. Gas odor requires leaving the area and contacting the gas utility or emergency service.
Repair or Replace? Let the Leak Source Decide
The location of the leak matters more than the puddle size. A small external valve or fitting problem may justify repair. A leaking tank shell changes the economics because the pressure vessel itself is not a serviceable component.
| Confirmed source | Typical direction | Replacement likely? |
|---|---|---|
| Drain valve | Repair or replace valve after safe isolation/draining | Usually no |
| Top water connection | Repair pipe, union, connector, or fitting | Usually no |
| T&P threaded connection | Professional inspection / reseal or valve service as appropriate | Usually no |
| Repeated T&P discharge | Diagnose pressure, thermal expansion, thermostat/temperature, and valve condition | Depends on root cause |
| Condensation | Confirm operating condition and rule out actual leak | No, if truly condensation |
| Tank body / bottom seam | Replace heater | Yes |
How Much Can Water Heater Repair or Replacement Cost in 2026?
Current Angi data puts professional water-heater repair at an average of about $615, with most projects ranging from roughly $228 to $1,017. Tank-style replacement currently averages about $1,347, with a typical range of about $881 to $1,825. Location, fuel type, tank size, access, permits, code upgrades, and the exact failure can move the total substantially.
| Repair / decision | 2026 planning figure | Notes |
|---|---|---|
| Professional water-heater repair | $228–$1,017 | Angi national project range; average about $615. |
| T&P relief valve replacement | Up to about $200 | Angi notes the part itself can be inexpensive, but diagnosis and labor matter. |
| Tank-style water-heater replacement | $881–$1,825 | Angi 2026 range; average about $1,347. |
| Internal tank leak | Replacement, not tank repair | Budget based on the complete installed replacement, not a patch. |
These are planning numbers, not quotes. A $615 national repair average does not mean every valve leak should cost that much, and a difficult gas, venting, electrical, permit, or access situation can push replacement beyond the typical range.
Call a Plumber Promptly If…
Frequently Asked Questions
Does water under the heater always mean the tank is bad?
No. A drain valve, T&P discharge pipe, top connection, or condensation can all put water at the base. The tank becomes the main suspect when external sources stay dry and water emerges from the tank shell or bottom seam.
Can a leaking water-heater tank be repaired?
A true leak in the tank pressure vessel is generally not repairable. Manufacturer guidance from A. O. Smith says a leaking tank should be replaced after loose fittings and other external sources have been ruled out.
Why is the T&P valve dripping?
The valve may be responding to excessive pressure, thermal expansion, temperature, or a valve/connection problem. Because it is a safety device, do not cap the discharge pipe. Repeated dripping should be diagnosed.
Can condensation make it look like my water heater is leaking?
Yes. A. O. Smith notes that condensation on gas water heaters can produce water around the unit and be mistaken for a leak, especially during certain operating conditions.
Is a leaking drain valve serious?
It needs attention, but it is often much more repairable than an internal tank leak. The important step is confirming that the water actually begins at the drain valve rather than the tank shell behind or below it.
Should I keep using a water heater that is leaking from the bottom?
If you have confirmed an active tank-body leak, continuing normal use is not a good idea because the leak can worsen. Arrange professional service and protect the surrounding area from water damage.
Technical References & 2026 Cost Sources
This guide was cross-checked against current manufacturer technical guidance and current 2026 cost data. Procedures vary by heater model, fuel type, plumbing configuration, and local code.
